2023-25 KTM 300 SX / XC
This build also applies to HUSKY 300 TC / TX - This does not apply to the XCW / TE models.
It's March 3rd, 2025. I've had this KTM 300 since 2023 and it hasn't seen much dirt. Most of it's life has been indoors on the dyno. Up until now, I've spent little time on this bike in the dirt, for than main reason that I live in a little town called Sequim, WA, in the pacific northwest.
The problem with testing here, is, that it's mainly tighter stuff, where you don't get past third gear and half throttle. I understand that, this type of riding is apealling to many, but I hate it. I mean hate it. I ride in it a lot for testing purposes, but I also complain about it to anyone in earshot.
So a lot of my time is spent indoors, developing stuff and then sending it out to great test riders I work with, for real world feedback. It's all been real good and everyone happy, but finally I'm heading to Az, to the warm fast desert, to test it all for myself.
Watch supporting video content
The things I will be discussing are the components that add up to the dyno improvemet seen here.
The yellow line is the stock bike when I bought it, and the red line represents the gains achieved with all the parts and ecu reprogramming that can purchased on bestdualsportbikes.com.
There are quite a few videos on the Pinit Racing youtube channel which will help you with all of this as well. Not all of it will be on this page, just the key parts.
If you were to do one thing to any TBI bike, it would be to replace the stock, cheap, rubber crankcase pressure sensor holder, with this better one we make. It fixes all the problems with the stock ones leaking and also the sensor positioning is much better.
The leaks change the pressure readings to th ecu, and that makes the bike run richer or leaner than normal, creating all kinds of ghost problems for you.
In addition, the upright position of the sensor now keeps oil from clogging the sensor's membrane, like it does with the stock position. This keeps the bike running crisper everywhere. Get this part.

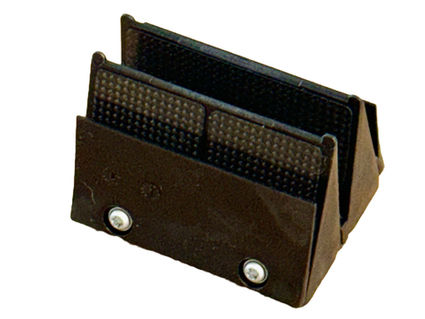

The second thing you'd do to any TBI bike is replace the "reed stops" with the "reed strips" we sell. You can see the reed stops in the picture with the black curved plastic piece holding the reed down. The other photos show the 2 strips alone and the strips now installed in place of the stops.
They are flexible fiberglass, and simply put, they just let the reeds open much more easily, by lowering it's tension at throttle openings below 1/2 throttle.
They provide a nice gain in throttle response and power. And many people have given the same feedback on them.
"That's a huge gain for only $20 and did a lot more than a $300 pipe did!"
At this point I can't suggest it strongly enough to replace your cheap, weak, crappy stock battery, with a great one. For one, it's the ONLY way you have to start the bike. If it turns to slow, the bike just won't start and you are stuck. Rarely will they even bump start.
So COVER YOUR BUTT and don't walk home or die in the middle of nowhere.
Also, the extra power these put out will increase throttle response a bit right off idle and into the midrange. You get 2 wins for one low cost.
Here you see a potential problem with the 23-25 300's. Not just the SX / XC bikes, but the XCW bikes as well. That is, that the intake skirt of the piston can, and many times does, hit the crankshaft, when the rpms are running really high.
You can see how I cut the bottom of the intake skirt up 2mm on the pistons I sell. You can see in the other pic, the black arrow showing where the skirt would touch the top of the crank half.
This would really only occur, if you are revving the bike hard and even more so if it's hot. Like a fats moto track on a hotter day. if you are riding below 3/4 throttle, it's really not a concern.
If the piston does hit the crank though, that thing is going to scatter. So if you are going to get a new piston, you may as well used one that's cut.
I have the real Vertex pistons and also the forged Wossner brand pistons available.
Now for the biggest power gain. Since we've covered how to fix the primary weak links, and the easy power gains are done, lets start making some real power! I'm talking about our ecu remapping.
A lot of continual work has been put into this mapping. A lot of the gains are made with controlling the power valve opening times and rates. This gets the bike up and going sooner and pulling harder.
After that, the ignition timing get's fixed. Ignition timing affects throttle response and power, but also affects the air fuel mixture. Once you get the balancing act of fuel and timing figured out, then hold on.
The result so far is a harder pulling bike in all gears from idle to top, and it's crisp.
Our ecu mapping is the only stuff out there with a 30 day satisfaction guarantee. So try with confidence.
